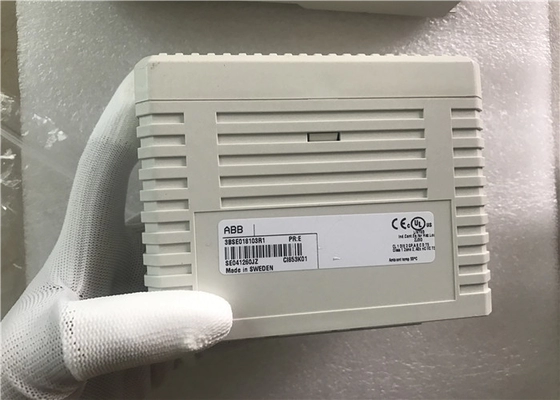

Digital I O Module 3BSE018103R1 CI853K01 module protocols ABB

Brand Name : ABB

Model Number : 3BSE018103R1 CI853K01

Place of Origin : India

MOQ : 1

Price : Negotiations

Delivery Time : 2-3 working days

Packaging Details : New original box

I/O Current, DC : 500mA

24 V Consumption Typ : 140 MA

Temperature, Operating : 0 To +55 °C

Temperature, Storage : -25 To +70 °C

Contact Now

Digital I O Module 3BSE018103R1 CI853K01 module protocols ABB

CI853 RS-232 module protocols:

COMLI can be used on the build in COM3 port and optionally on the CI853 ports. The cable length can be extended considerably (to several km) using a fiber optic converter. RS-232C is the standard communication interface used for serial communication with COMLI. The CI853 supports Hot Swap. COMLI is an ABB protocol for data transmission between controllers. It is designed for asynchronous master/slave communication in half-duplex. COMLI protocol supports dial-up modem controlled from the application. CI853 supports both Master/Slave mode in COMLI.

MODBUS RTU is a standard protocol widely spread because of its ease of use and reliability. Modbus RTU is an open, serial (RS-232 or RS-485) protocol derived from the Master/Slave architecture exchanging information in half duplex mode. The Modbus functionality can be configured both on the COM ports of AC 800M and CI853. Module Redundancy is not available in MODBUS RTU. CI853 supports only Master mode in MODBUS RTU.

General info

Protocol	COMLI and MODBUS RTU
Article number	3BSE018103R1 (CI853K01)
Master or slave	Master / Slave
Number of channels	2
Transmission speed	75 - 19 200 b/s
Line redundancy	Yes
Module redundancy	Yes
Hot Swap	Yes
Used together with HI Controller	Yes

Detailed data

Max units on CEX bus	12
Connector	RJ-45 female (8-pin)
24 V consumption typ.	100 mA

Environmental and certification

Temperature, Operating	+5 to +55 °C (+41 to +131 °F)
Temperature, Storage	-40 to +70 °C (-40 to +158 °F)
Protection class	IP20 according to EN60529, IEC 529
CE- marking	Yes
Marine certificates	ABS, BV, DNV-GL, LR, RS, CCS
RoHS compliance	EN 50581:2012
WEEE compliance	DIRECTIVE/2012/19/EU

Dimensions

Height	185 mm (7.3 in.)
Width	59 mm (2.3 in.)
Depth	127.5 mm (5.0 in.)
Weight (including base)	700 g (1.5 lbs)
